Mounting Hardware Information for 1/2 and 1 Inch Cutting Edges
Mounting Hardware for 1/2" Cutting Edges

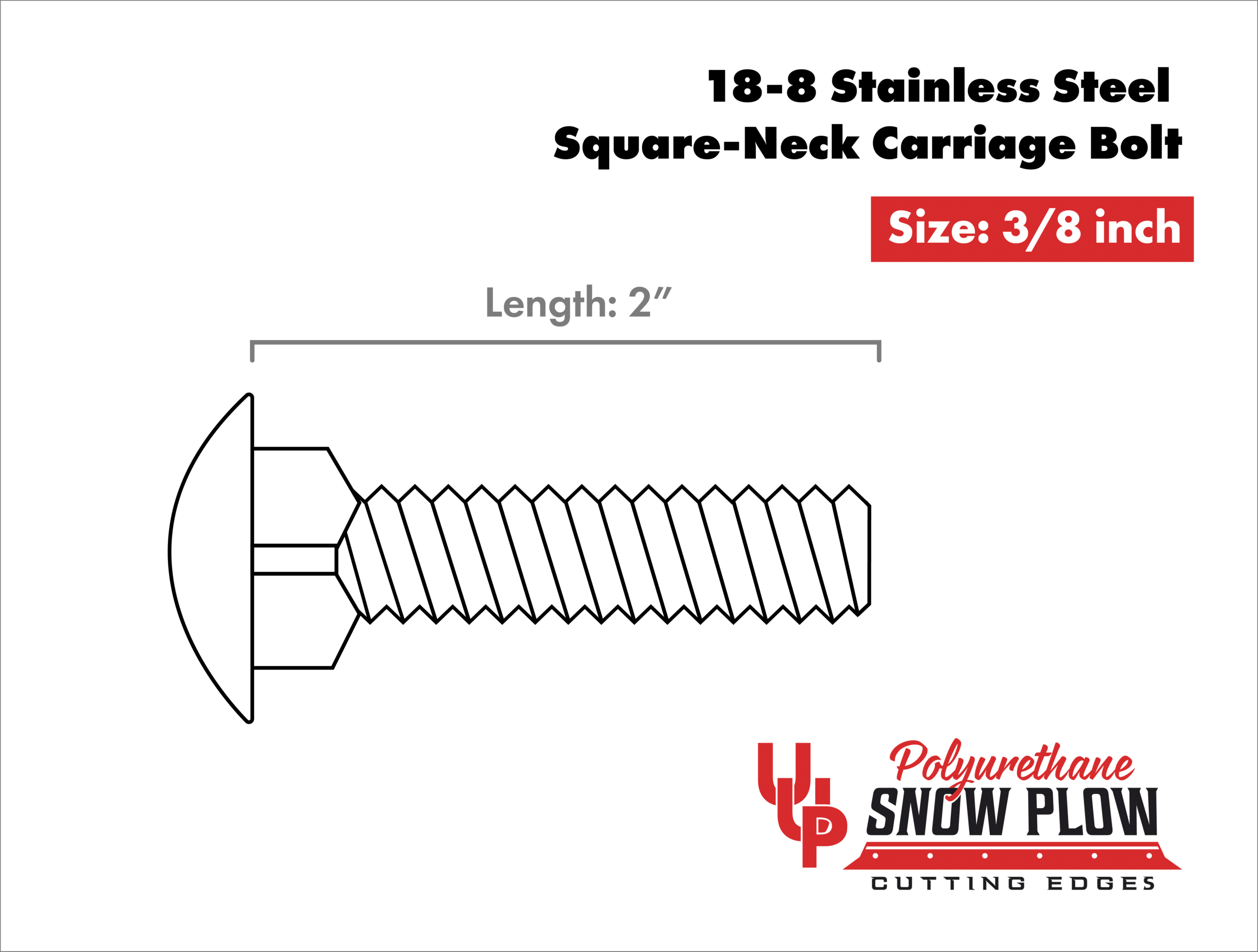

18-8 Stainless Steel Square-Neck Carriage Bolt
Made from 18-8 stainless steel, these bolts have good chemical resistance and may be mildly magnetic. A smooth, rounded head provides a finished look. Length is measured from under the head. Dimensions meet ASME B18.5 or DIN 603 specifications.
| Head Type | Rounded |
| Thread Size | 3/8"-16 |
| Length | 2" |
| Head | |
| Diameter | 0.844" |
| Height | 0.208" |
| Material | 18-8 Stainless Steel |
Medium-Strength Steel Hex Nut
Grade 5, Zinc-Plated, 3/8"-16 Thread Size
| Hex Nut Profile | Standard |
| Material | Zinc-Plated Steel |
| Thread Size | 3/8"-16 |
| Width | 9/16" |
| Height | 21/64" |

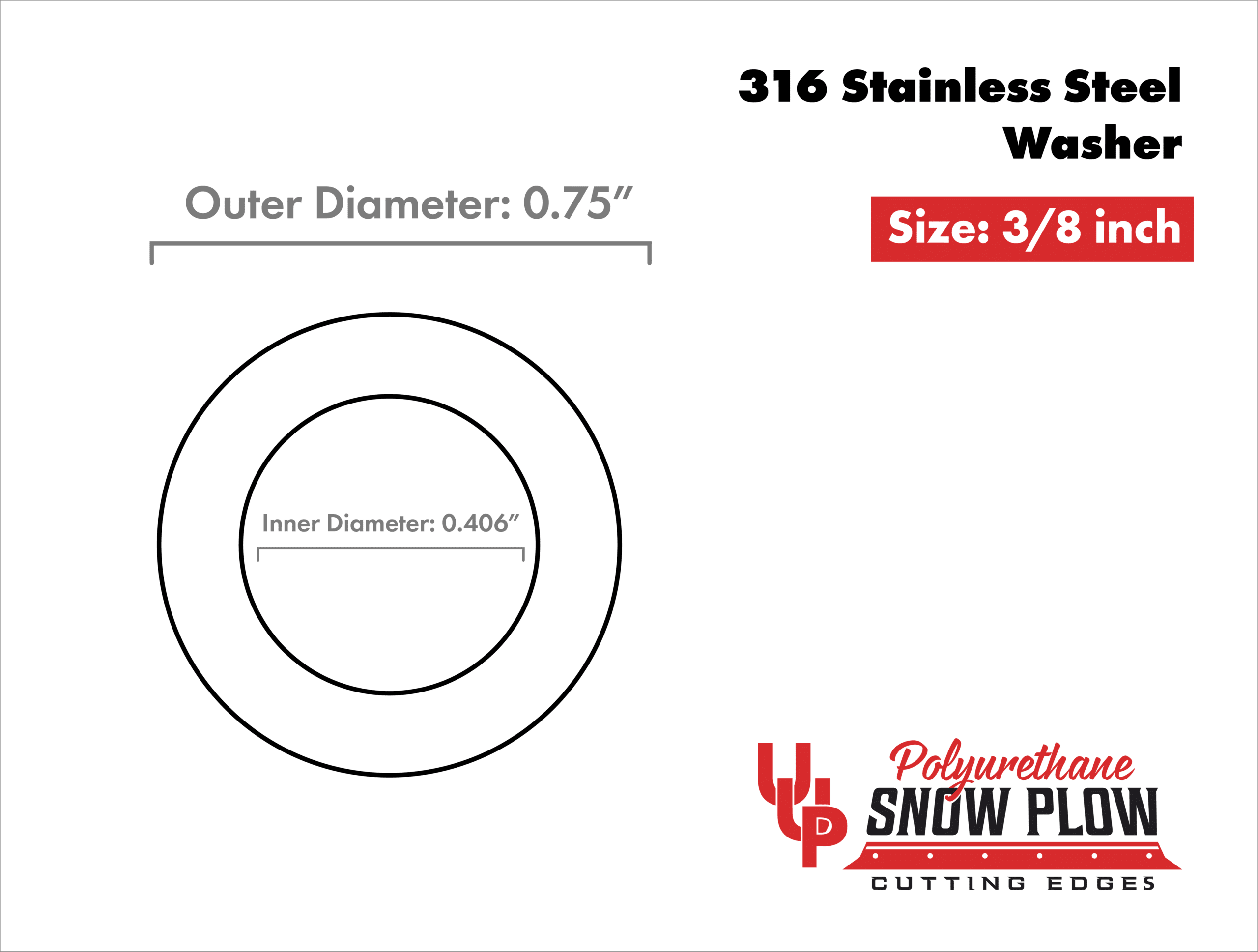

316 Stainless Steel Washer
for 3/8" Screw Size, 0.406" ID, 0.75" OD
| Material | 316 Stainless Steel |
| For Screw Size | 3/8" |
| ID | 0.406" |
| OD | 0.750" |
| Thickness | 0.040" to 0.060" |
Mounting Hardware for 1" Cutting Edges
18-8 Stainless Steel Square-Neck Carriage Bolt
Made from 18-8 stainless steel, these bolts have good chemical resistance and may be mildly magnetic. A smooth, rounded head provides a finished look. Length is measured from under the head. Dimensions meet ASME B18.5 or DIN 603 specifications.
| Head Type | Rounded |
| Thread Size | 1/2"-13 |
| Length | 2" |
| Head | |
| Diameter | 1.094" |
| Height | 0.27" |
| Material | 18-8 Stainless Steel |

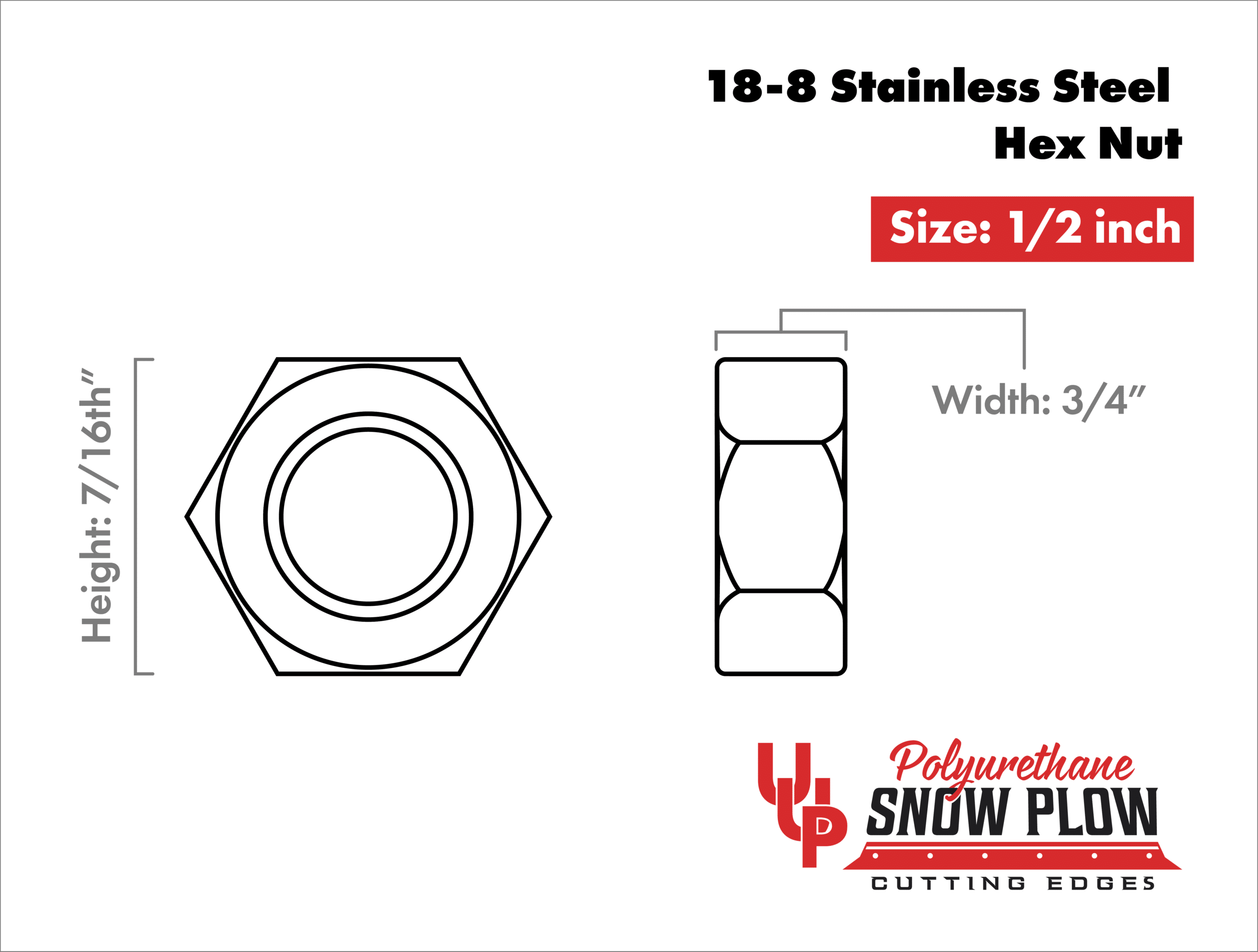

18-8 Stainless Steel Hex Nut
1/2"-13 Thread Size
| Hex Nut Profile | Standard |
| Material | 18-8 Stainless Steel |
| Thread Size | 1/2"-13 |
| Width | 3/4" |
| Height | 7/16" |

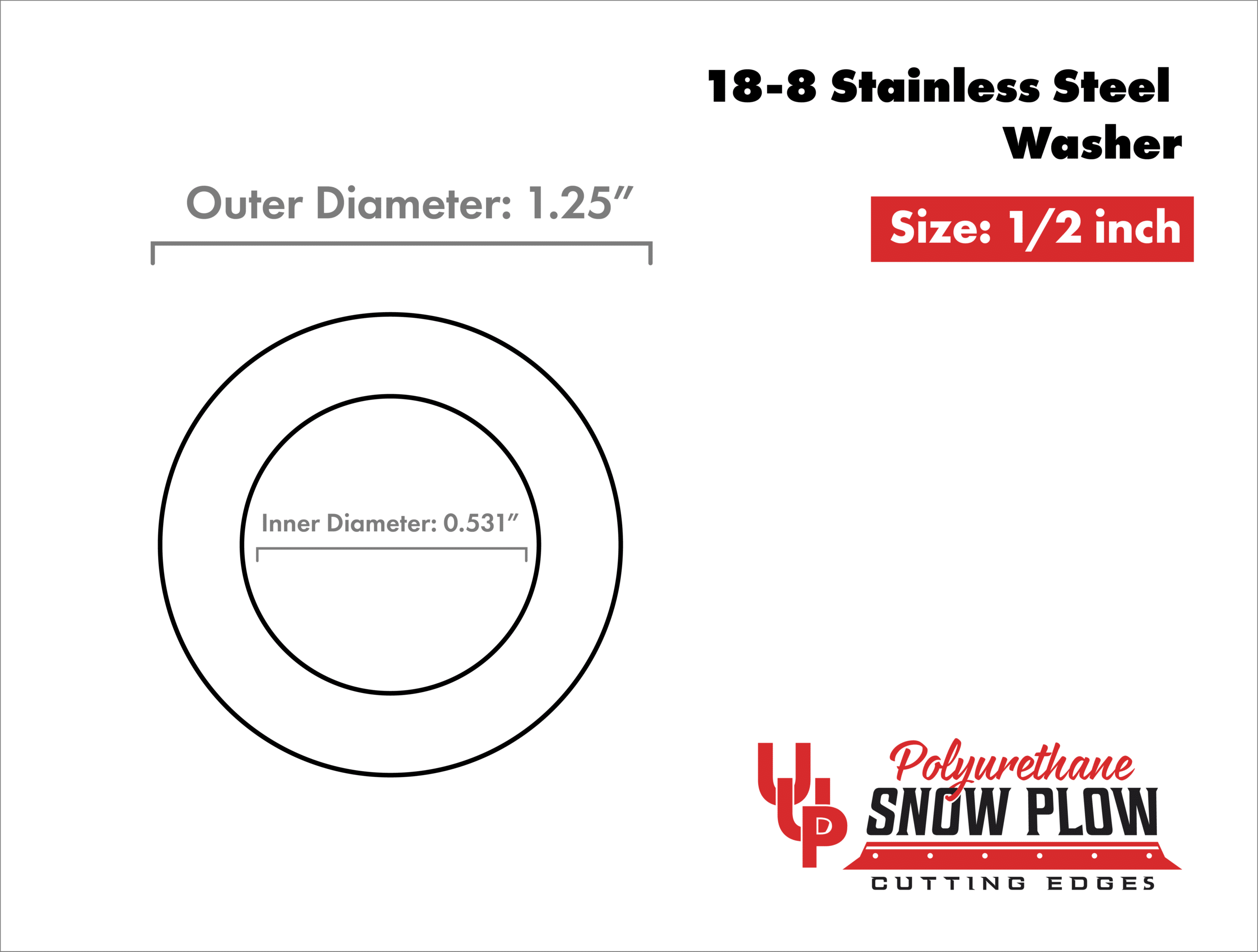

18-8 Stainless Steel Washer
for 1/2" Screw Size, 0.531" ID, 1.25" OD
| Material | 18-8 Stainless Steel |
| For Screw Size | 1/2" |
| ID | 0.531" |
| OD | 1.250" |
| Thickness | 0.055" to 0.069" |
